SAM 3: Segment Anything with Concepts
Imagine if your SAM could understand semantics without external code/involvement, SAM3 by Meta provides a unified method to detect, segment and tracks all instances of a specific concept in images.
Table of contents
Introduction
The Segmentation Tasks: Semantic, Instance, and Panoptic
Why a Foundation Model for Segmentation is so Hard?
The SAM Model (SAM 1 and SAM 2)
The Bottleneck of PVS
Ideal case
Methodology
Promptable Concept Segmentation (PCS)
Data and Data Engine
Metrics
Model architecture

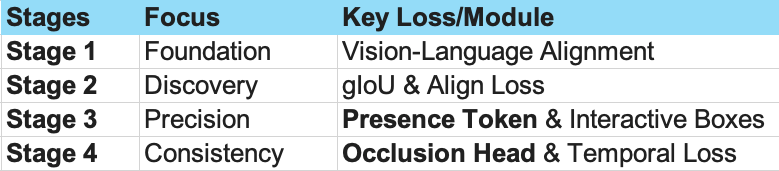

Training pipeline
Inference

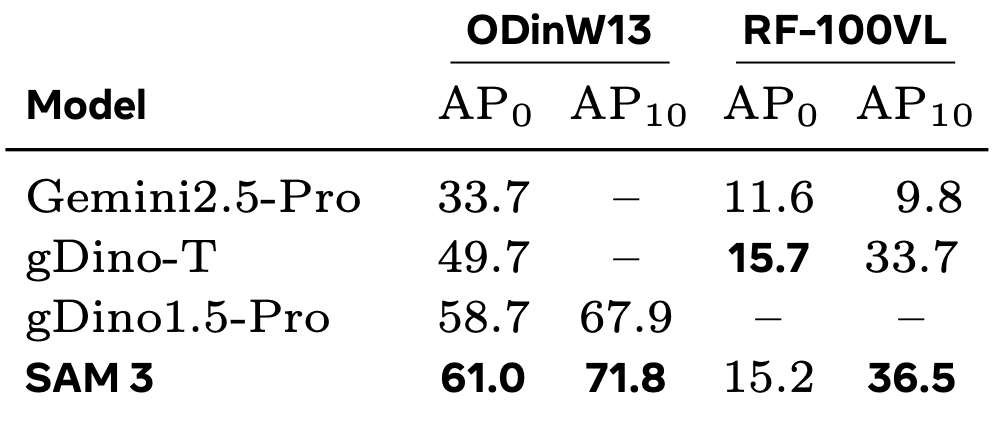

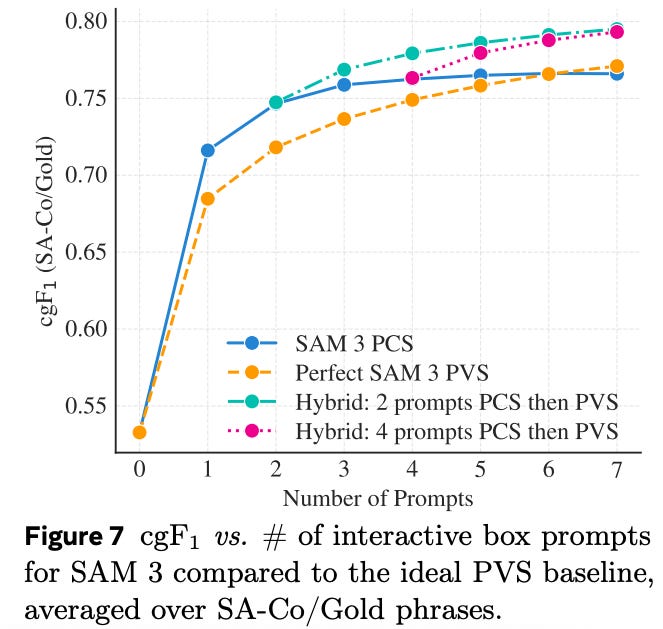

Results/Outcome

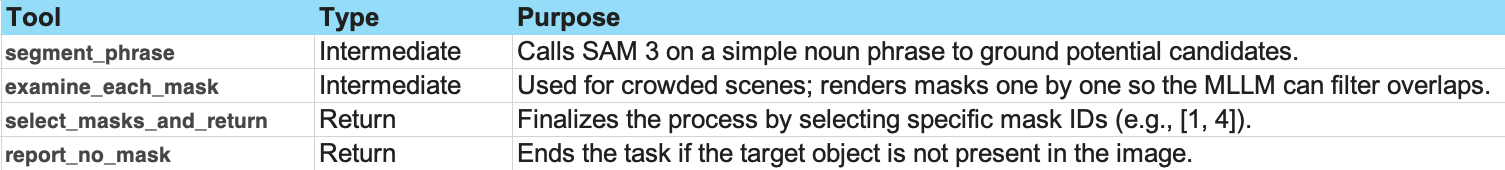

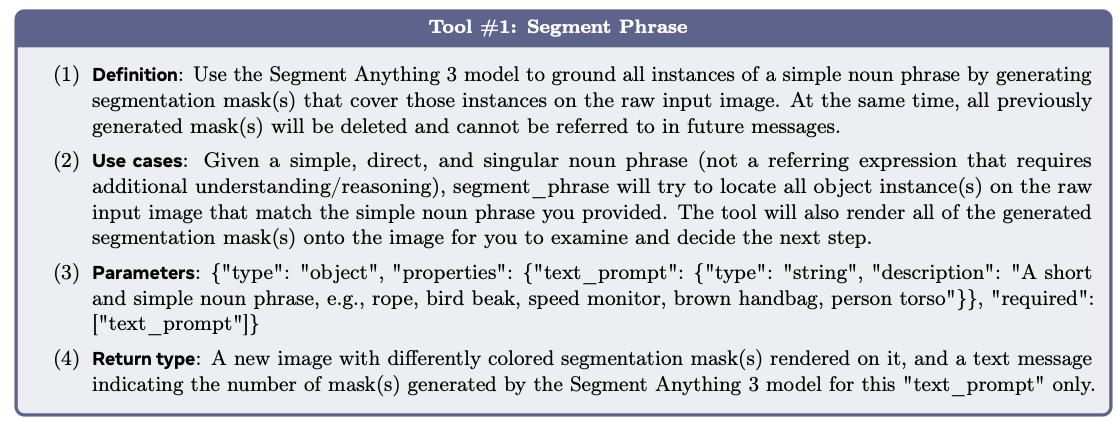

SAM 3 Agent (Visual)
Thoughts
Conclusion
1. Introduction
Object segmentation is the “holy grail” of computer vision. It’s the task of giving an AI a pair of scissors and asking it to cut out every individual item in an image not just seeing a “blob” of a car, but tracing every tire, window, and door handle with surgical precision.
For a long time, this was dominated by human-intervention-based, generalized image-processing methods like Watershed (frequently used in cell analysis) or GrabCut. While the era of Deep Learning eventually brought us models capable of providing robust masks, they were “specialized”; meaning they only worked on specific classes or labels they had seen during training. If you trained it on cats, it was blind to chairs.
Then came the original Segment Anything Model (SAM). It broke this barrier by providing a generalized model for segmentation tasks without the restrictions of the past. It combined the “segment anything” flexibility of old image-processing methods with the high-quality, robust masks of deep learning.
But even with SAM, there was a catch.
Have you ever tried to describe a “vintage red leather chair” to someone using only your finger? You point, they look; you point again, they see. From the first SAM 1 to its video-savvy successor SAM 2, the game was simple: Give me a point or a box, and I’ll give you a mask. It was a masterpiece of geometry (essentially a digital finger pointing at pixels). But, it’s like asking a blind-folded artist to fill in paint in your sketch, which he/she has no idea at all.
But what if you don’t want to point? What if you want to say, “Find every yellow school bus in this 10-minute video,” and just walk away to grab a coffee?
Well, bear with me, because we are entering a new era. SAM 3 isn’t just about where things are; it’s finally starting to understand what they are.
In this article, we’re going to glide through the transition from Promptable Visual Segmentation (PVS); where we essentially played “tag” with pixels, to the much more powerful Promptable Concept Segmentation (PCS). We’ll see how Meta moved from geometry to semantics, and why “understanding” an object is much harder (and much more rewarding) than just “tracing” it.
2. The Segmentation Tasks: Semantic, Instance, and Panoptic
Before SAM 3 can “understand concepts,” we need to define the three traditional ways AI has been taught to look at a scene. Imagine a photo of a street with five people, three cars, and a large patch of sky.

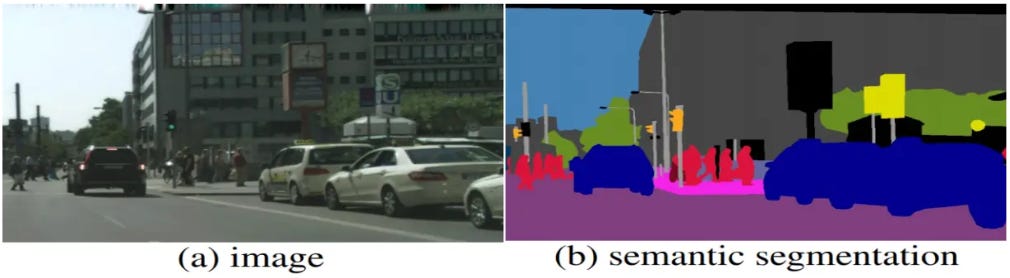

1. Semantic Segmentation (The What)
This is the “categorical” view. The model looks at the image and assigns every single pixel to a class.
The Logic: “All these pixels are ‘Person,’ and all those pixels over there are ‘Car.’”
The Flaw: It doesn’t care about individuals. In our street photo, the five people would be merged into one giant, multi-limbed “Person blob.” It sees the material, not the object.

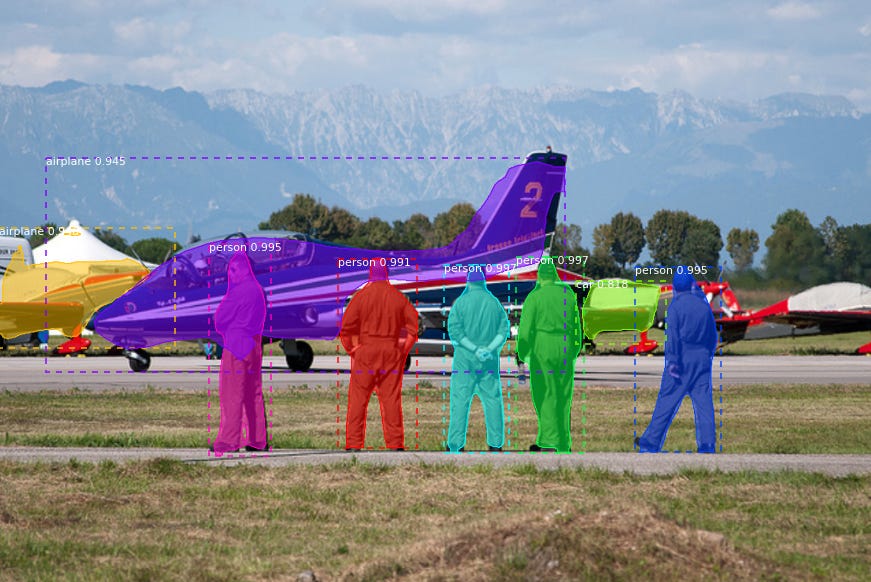

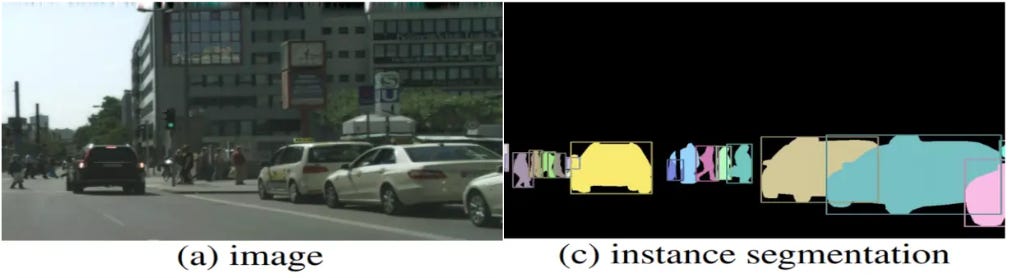

2. Instance Segmentation (The Who)
This is the “individual” view. The model only cares about things it can count (often called “things” in research papers).
The Logic: “Here is Person #1, Person #2, and Car #1.”
The Catch: It usually ignores the background. The sky, the road, and the grass are left as “nothingness” because you can’t really have “one instance of sky.”

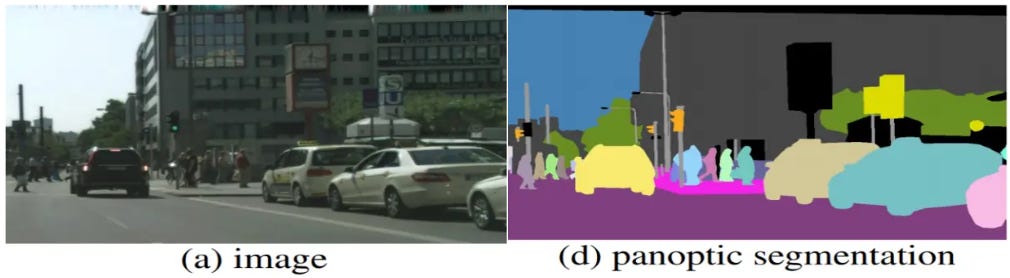

3. Panoptic Segmentation (The Everything)
Panoptic is the “unified” view. It combines the two above. It identifies every individual person (instances) and classifies the background sky and road (semantics). Here, every object gets a semantic ID and an instance ID, hence maintaining class and individuality information both.
Where does SAM lie?
This is where it gets interesting. The original SAM 1 and 2 didn’t perfectly fit into any of these boxes. Why? Because they were class-agnostic.
If you clicked a person, SAM would give you an Instance mask, but it didn’t know the label “Person.” It was like a master tailor who can perfectly cut a suit but doesn’t know the word “suit.” It was purely a Geometric Segmenter.

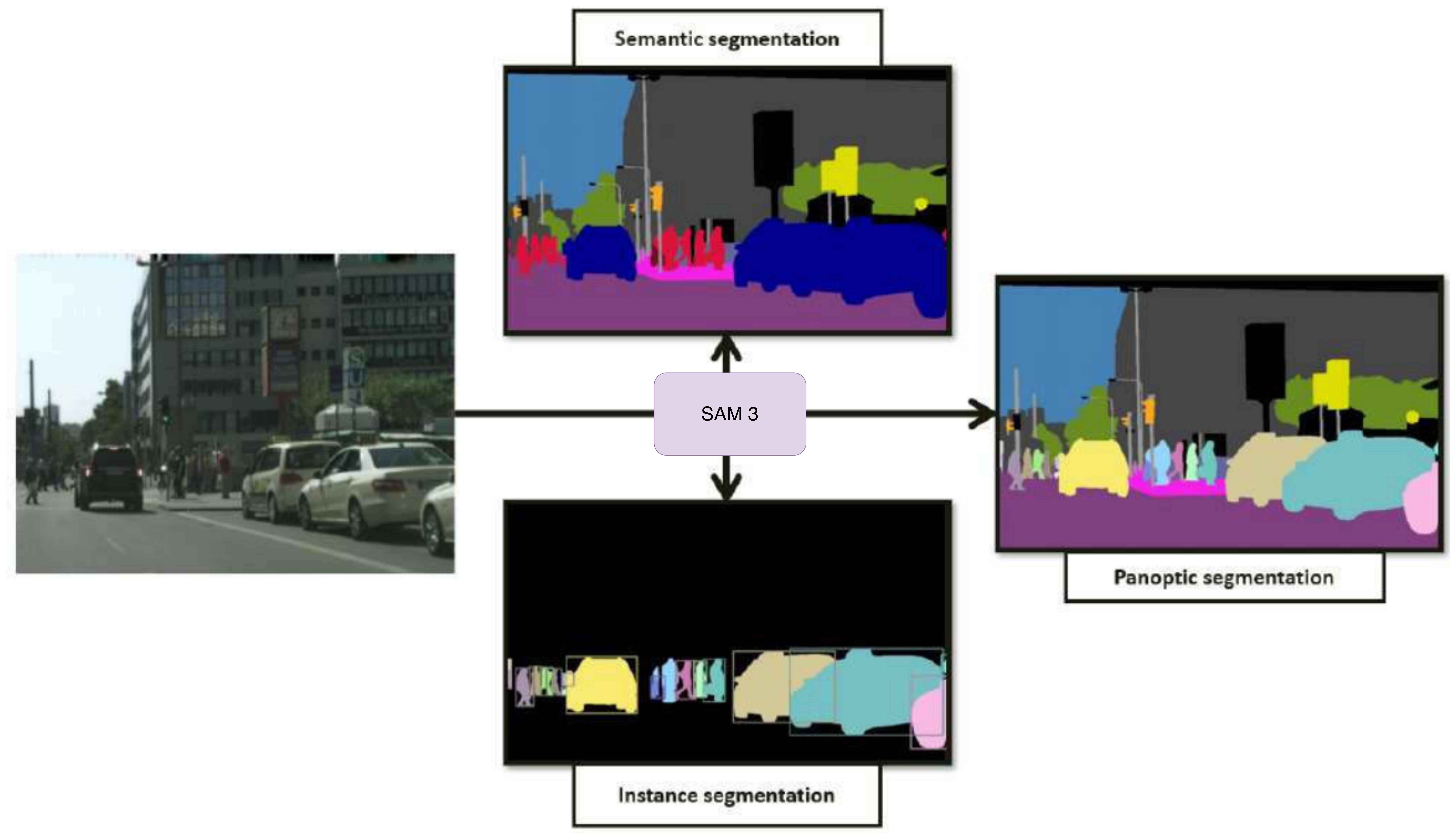

SAM 3 is the bridge. By introducing Promptable Concept Segmentation (PCS), SAM 3 effectively performs Open-Vocabulary Panoptic Segmentation.
It’s Semantic: Because it understands the “Concept” (e.g., “Sky” or “Grass”).
It’s Instance-based: Because it can distinguish between “Yellow Bus #1” and “Yellow Bus #2.”
It’s Unified: It can handle both “stuff” (backgrounds) and “things” (objects) across images and videos.
If older models were specialists in “Who” or “What,” SAM 3 is the first generalist that understands “Who, What, and Where” all at once. It takes the “Universal Scissors” of SAM 1 and hands them to a model that has actually read the encyclopedia.
3. The “Holy Grail” Problem: Why a Foundation Model for Segmentation is so Hard (and So Vital)
Before we look at the “how,” we have to address the “why.” You might think, “We have GPT-4 for text and Sora for video; why was a ‘Foundation Model’ for pixels so late to the party?” Well, bear with me, because pixels are much “messier” than words.
1. The Infinite Variety of Things
In language, a “word” is a discrete unit. But in a photo of a forest, where does one leaf end and another begin? Is the tree one object, or is every branch, twig, and lichen-covered patch of bark a separate entity?
Creating a foundation model means the AI can’t just memorize 1,000 categories (like the famous ImageNet). It must understand the very concept of “objectness.” It has to look at a shape it has never seen before; lets say, a piece of alien machinery or a microscopic cell and instinctively know its boundaries. This is the difference between a student who memorizes the textbook and a scientist who understands the laws of physics.
2. The Annotation Tax
This is where it gets physically painful. Training a text model is “easy” in one sense: the internet is a giant pile of free text. But to train a segmentation model, a human usually has to sit down and painstakingly trace the outline of objects.
The Math of Labor: Tracing a single complex object can take a human 10 to 60 seconds. To get to the scale of a “Foundation Model,” you need billions of masks. If we relied purely on manual labor, we’d still be waiting for SAM 1 in the year 2050!
3. Why It’s the “Bedrock” of Vision
So, why go through all this trouble? Because segmentation is the “eyes” for every other task.
Robotics: A robot can’t pick up a mug if it can’t tell where the handle ends and the table begins.
Medicine: A surgeon needs to know exactly where a tumor stops and healthy tissue starts.
Self-Driving: It’s not enough to know there is a “blob” in the road; the car needs to know if that blob is a cardboard box or a small child.
Without a Foundation Model for segmentation, every AI developer has to “re-invent the wheel” for their specific task. SAM 3 aims to be the Base/fine-grained Information extraction layer; the universal layer that understands the physical structure of our world so we don’t have to (atleast at the pixel level).
2. The Great Divide: Why Segmenting “Anything” Used to be a Zero-Sum Game
For years, if you wanted to segment an image, you had to pick a side. You were either using Image Processing or Deep Learning Specialists. You couldn’t have both quality and generality.
Camp A: The Smart Specialists (Deep Learning)
When Deep Learning arrived, we finally got “robust” masks. These models didn’t just look at color; they looked at Semantics. They understood that a “wheel” belongs to a “car.”
The Power: They provided surgical, high-quality masks that could handle shadows and overlaps.
The Catch: They were “Closed-World.” They only worked on the specific classes (e.g., “Person,” “Dog,” “Chair”) they saw during training. Show a medical-grade specialist model a picture of a “corrugated cardboard box,” and it might see nothing at all. They were incredibly smart, but they were essentially “specialized doctors” who couldn’t identify a common cold outside their field.
Camp B: The Shallow Generalists (Image Processing)
On the other side, we had Generalist methods like GrabCut or Watershed. These didn’t care about labels, so they could technically segment “anything.” But they were “Shallow.”
The Logic: “Is the color/texture of Patch A mathematically similar to Patch B?”
The Flaw: This is a Shallow Representation. It relies on local features like color gradients.
In the world of text, this is like using “Frequency-based” methods (counting words) versus “Semantics-based” methods (understanding meaning). A frequency-based model knows the word “Apple” appears twice, but it doesn’t know if it’s a fruit or a trillion-dollar tech company. Similarly, these older vision methods saw the “count” of red pixels, but lost the “semantics” of the apple.
The Architectural Dead-End
The real “bottleneck” wasn’t just the math; it was the Data and Representation.
Semantic Loss: Because image processing relied on local features, it had no “Visual Vocabulary.” It couldn’t connect a “wing” and a “beak” because they look nothing alike at a pixel level.
No Intervention: There was almost no room for manual intervention at the model level. Because there was no learned “latent space,” you couldn’t “teach” the model to be better. You were stuck with the limitations of your hand-crafted kernel.
To bridge this gap, we needed a model that had the robust semantics of a specialist but the limitless vocabulary of a generalist. We needed a model that could see a shape it had never seen before and say, “I don’t know what that is, but I know exactly where it ends.”
4. The SAM Model: Bridging the Gap with PVS
How did SAM break the bottleneck? It didn’t just try to be a better “classifier”; it redefined the interface between humans and pixels through Promptable Visual Segmentation (PVS).
The Power of the “Prompt”
SAM’s “secret sauce” was its ability to take a Visual Prompt (a point, a box, or a rough mask) and treat it as a command.
Remember our toddler analogy? SAM acted like a highly trained assistant who is watching your finger. When you click a pixel, the model doesn’t just look at that color; it projects that point into a high-dimensional Feature Space. It asks: “What is the most likely ‘object-like’ structure that contains this point?”
Why It Works So Well: The Region-Based Assumption
Under the hood, SAM operates on a sophisticated version of Region-Based Segmentation.
Instead of the old “Macro-pixel” approach where we compared Patch A to Patch B using a fixed kernel, SAM uses a Vision Transformer (ViT) backbone to create a rich, semantic map of the entire image.
The Representation: Unlike GrabCut, which only saw color gradients, SAM’s representation is “deep.” It understands edges, textures, and even parts of objects.
The Ambiguity Solver: If you click on a person’s arm, are you segmenting the arm, the shirt sleeve, or the whole person? SAM handles this by producing multiple valid masks (sub-part, part, and whole) and assigning a confidence score to each.
Connecting the Dots: Ambiguity as a Feature, Not a Bug
In older architectures, ambiguity was a failure. If the math was 51% sure it was a leaf and 49% sure it was a frog, the result was a messy, flickering mask.
SAM embraces this. By moving from a simple kernel to a Prompt-based Decoder, it allows for “Interactive Refinement.” If the first click doesn’t get the whole object, the second click acts as a “correction.”
It’s like sculpting with clay. Older methods gave you a fixed mold; if the mold was wrong, the sculpture was ruined. SAM gives you the clay and a set of tools (points/boxes) to refine the shape until it’s perfect.
The “Generalization” Miracle
The reason SAM feels like magic is that it was trained on 1.1 Billion masks (the SA-1B dataset). This massive scale allowed it to learn a “Universal Concept of Objectness.”
It doesn’t need to know what a “microscope” is to segment one perfectly. It just recognizes that the metal, the glass, and the base form a coherent, self-contained Region. It combined the Robustness of Deep Learning with the Flexibility of Image Processing, effectively ending the “Zero-Sum Game” we talked about in the last section.
To truly appreciate the leap to SAM 3, we have to understand the architectural “DNA” it inherited from its ancestors. Both SAM 1 and SAM 2 were masterpieces of engineering, but they were built for a different kind of conversation.

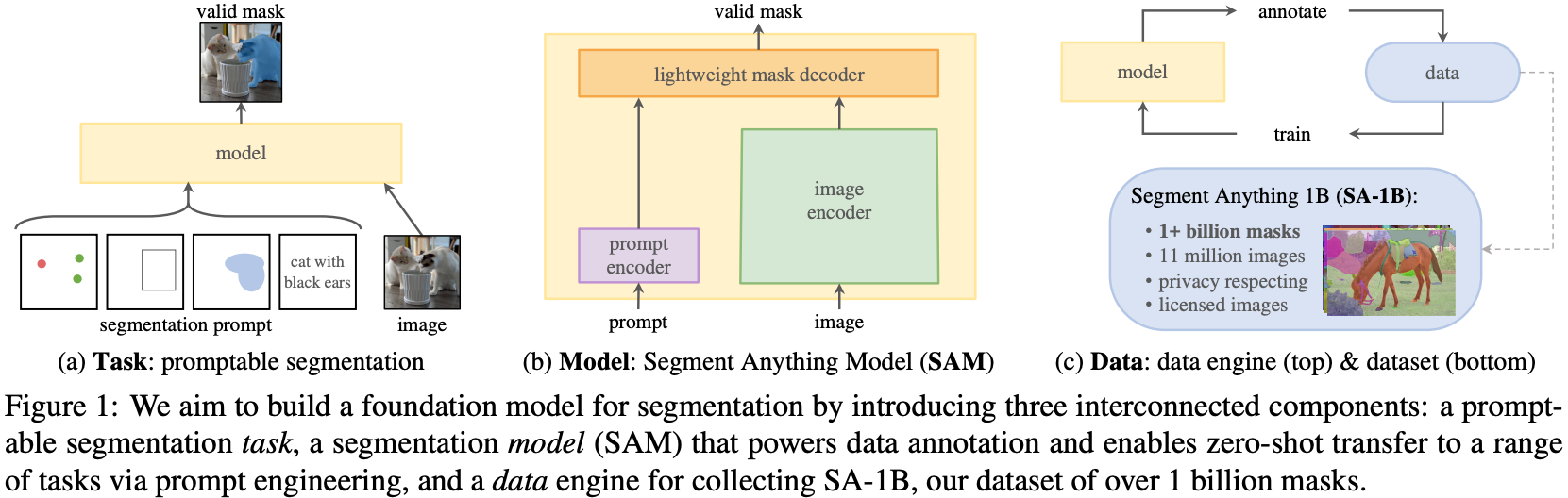

SAM 1: The Foundation of Interactive Geometry

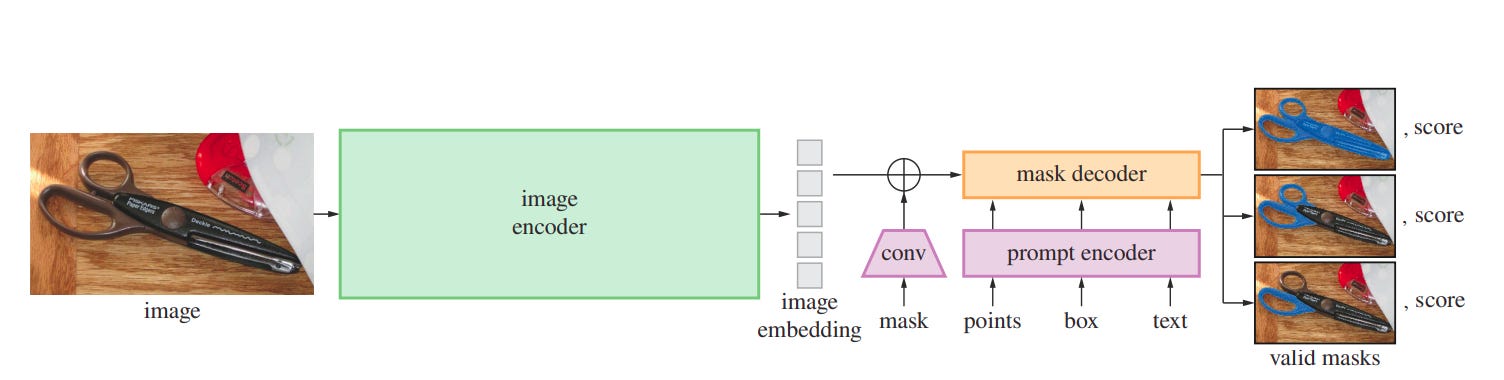

SAM 1 introduced the world to the Decoupled Image-Prompt Architecture.1 It split the task into two distinct speeds:
The Heavy Lifter (Image Encoder): A massive Vision Transformer (ViT) that processes the image once. It’s slow, but it creates a rich “feature map” a high-dimensional representation of every pixel.
The Sprinter (Prompt Encoder & Mask Decoder): This is the magic part. It takes your “points” or “boxes” and merges them with the feature map in real-time.
Because the heavy image encoding happens only once, you can click anywhere in the image and get a mask in ~50ms. It turned a complex optimization problem into a simple “lookup” table.

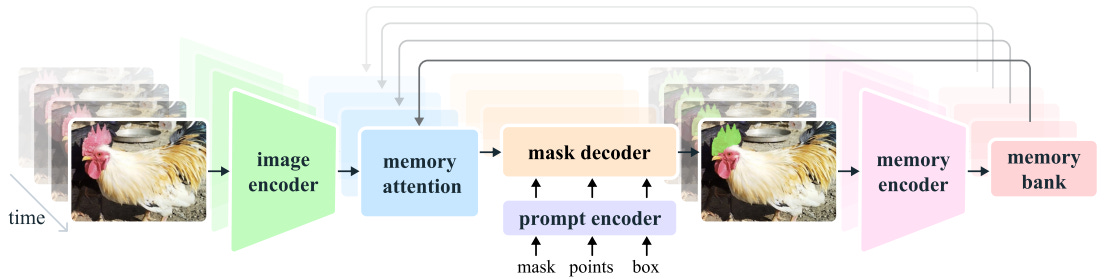

SAM 2: Adding the “Time Dimension”
SAM 2 took that same foundation and added Memory. If SAM 1 was a photographer taking a still shot (evaluating/processing a single frame), SAM 2 was a filmmaker (operating over a group of frames).
It introduced a Memory Bank and a Memory Attention layer. Instead of seeing every video frame as a new image, it asked: “How does the current frame relate to what I saw 5 frames ago?” It allowed the model to “remember” the mask of a dolphin even as it splashed through water, effectively bridging the gap between images and video.
The Missing Link: The Semantic “Brain”
So, if SAM 1 and 2 were so good, what was missing? The Prompt Encoder was too simple.
In SAM 1 and 2, the Prompt Encoder only understood Geometry (coordinates x, y). It had no idea what a “dog” or “chair” was.
They were Content-Agnostic. To them, every “point” was just a coordinate on a grid, not a concept in a dictionary.
SAM 3’s architecture finally takes the decoder and gives it a Semantic Vocabulary. It’s the same fast, efficient engine, but it finally knows how to read the map it’s looking at.
While SAM 1 and SAM 2 felt like magic, even magic has its limits. If you’ve ever used SAM to annotate a long video or a complex scene, you’ve likely hit a wall : the PVS Bottleneck.
4. The Bottleneck of PVS

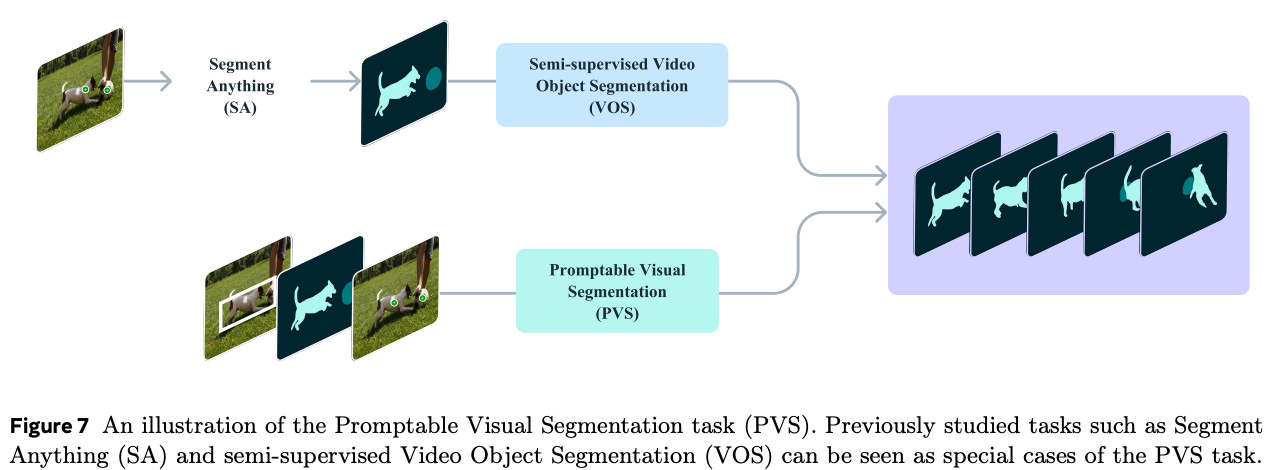

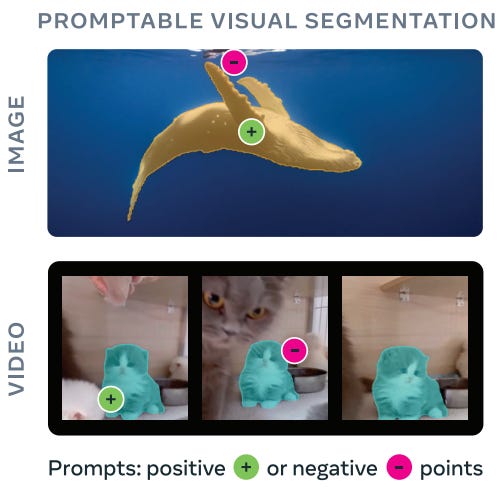

The original SAM methodology was built on Promptable Visual Segmentation (PVS). It relied on “Visual Guidance.” But as amazing as it was to have a model that could segment “anything,” we realized that “anything” is a lot of work when you have to point at it yourself.
Human dependency
The primary issue with PVS is that it is human-dependent. To get a mask, you must provide a click, a box, or a scribble.
Imagine you are a researcher studying traffic patterns. You have 48 hours of high-definition footage, and you need to segment every “delivery truck.”
The PVS Workflow: You have to click the truck in frame 1. Then, if the truck goes behind a tree or the lighting changes in SAM 2, you might need to “correct” it with more clicks.
The Scale Problem: If there are 50 trucks, that’s hundreds, if not thousands, of manual interventions.
The Semantic Gap
The second bottleneck is that PVS is Semantically Silent (as we discussed above).
SAM is a master of geometry, but it’s “conceptually illiterate.” It knows that this group of pixels belongs together, but it doesn’t know it’s a “cell membrane” or a “yellow school bus.” This leads to two major frustrations:
Lack of Identity: In a video, SAM might track an object, but if that object leaves the frame and comes back, SAM has no way of knowing it’s the same “concept” unless you point at it again.
The Hallucination of Shape: Because it only follows your “point,” it doesn’t use the meaning of the object to refine the mask. If you click a white shirt, it might accidentally include a white wall behind it because, geometrically, the boundary is fuzzy. It lacks the “common sense” to say, “Wait, walls aren’t made of cotton.”
The Search for the Auto-Pilot
We reached a point where we didn’t just want a model that could trace what we pointed at; we wanted a model that could recognize what we named.
We needed to move from the “Digital Finger” (Geometry) to the “Digital Brain” (Concepts). We needed a system that could take a natural language prompt like “Find all rusted bolts” and handle the rest without a single human click.
5. The Ideal Case
In an ideal world, the interaction between a human and an AI shouldn’t be a tedious game of “connect the dots.” It should be a high-level conversation. The “Ideal Case” for segmentation rests on three pillars all of which were the driving force behind SAM 3.
Semantic Autonomy
In the ideal case, we shouldn’t have to point. We should be able to provide a Concept Prompt; i.e. a phrase like “damaged roof shingles” or “rare tropical birds” and the model should have enough “world knowledge” to find every instance of that concept automatically. Here the Goal is Moving from “Where is this?” to “What is this?”
Temporal Consistency
The ideal system wouldn’t just see an image; it would understand a Timeline. If a “red backpack” disappears behind a person and reappears three seconds later, the model shouldn’t treat it as a new “mystery object.” It should maintain a Unique Identity for that concept across the entire video, without needing a human to “re-point” it out.
Decoupled Intelligence
The most annoying part of current AI is “hallucination.” If you ask an old model to find “fire hydrants” in a room full of furniture, it might get confused and mask a red stool just because it’s trying to be helpful.
The model should first ask, “Is there a fire hydrant here?” If the answer is no, it shouldn’t even attempt to draw a mask. This is the Recognition vs. Localization split. We need a “Presence Check” to ensure the AI only speaks when it actually sees something.
This is where SAM 3 from Meta walks into the picture. It solves the problems we’ve discussed by introducing something which they call as Promptable Concept Segmentation (PCS) along with already existing PVS.
Methodology
Now we understand what our problems are with older SAM variants and specialized segmentation models as well as how our ideal setup would look like to solve them. Lets see how it has been actually done in SAM 3 paper.

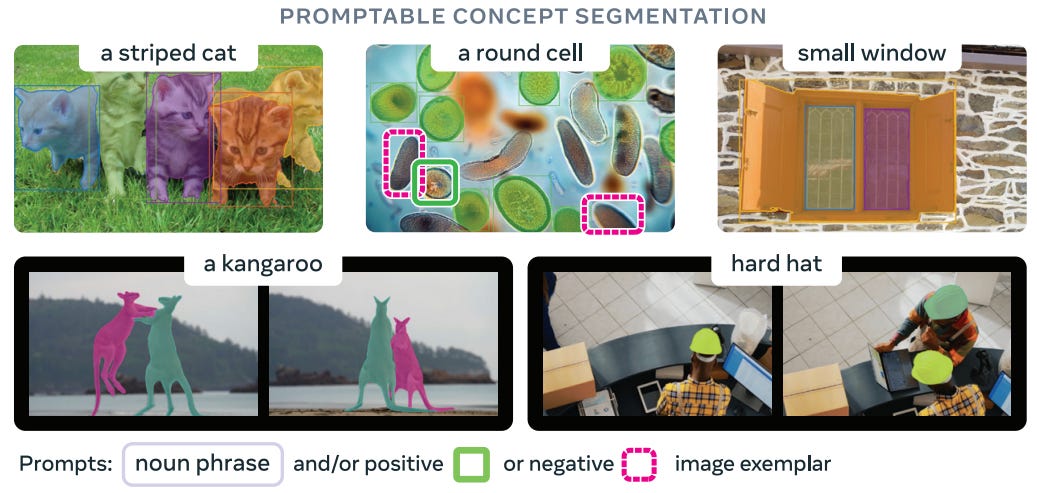

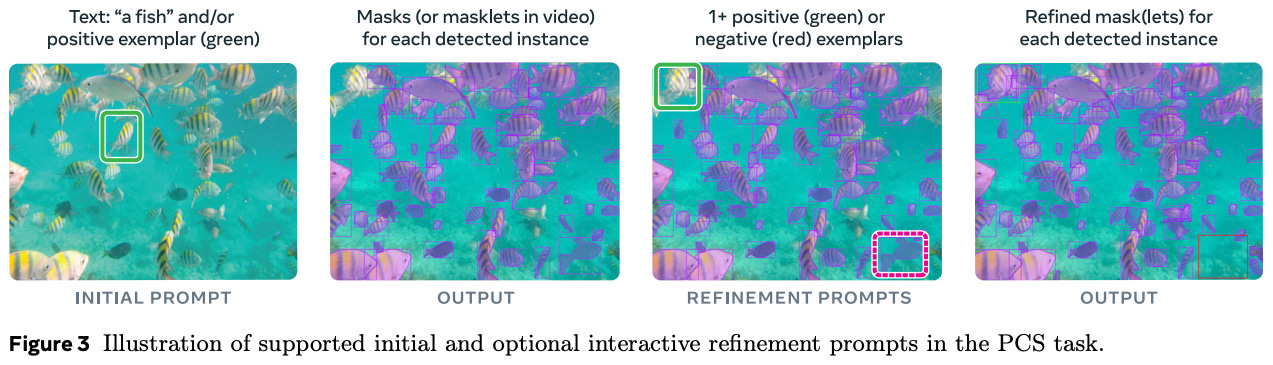

Promptable Concept Segmentation (PCS)
The move from SAM 2 to SAM 3 is defined by the transition from “pointing” at pixels to “naming” concepts. This shift is formalized through a new task called Promptable Concept Segmentation (PCS).
Unlike previous versions that relied on geometric cues (PVS) to segment a single object, PCS allows the model to understand and isolate an entire class of objects across an entire scene or video.
Task Definition: Given an image or a short video (<= 30 seconds), the model must detect, segment, and track every instance of a visual concept.
Concept Specification: Users define the target concept through:
Text Phrases: Simple noun phrases (NPs) consisting of a noun and optional modifiers (e.g., “vintage red truck”).
Image Exemplars: Providing a bounding box around a specific example to show the model exactly what to look for.
Hybrid Prompts: A combination of both text and visual examples for maximum precision.
Global vs. Local Context:
Noun Phrases act as global instructions, applying to all frames in a video.
Exemplars can be provided on individual frames as positive or negative boxes to iteratively refine the target masks.
Prompt Consistency: Prompts must remain consistent in their category definition. For example, if the prompt is “fish,” you cannot refine it with an exemplar of just a “tail.” To change the scope, the text prompt itself must be updated.
Open-Vocabulary Nature: The task is fundamentally open-vocabulary, meaning the model can segment any noun phrase that is visually “groundable.” It is not restricted to a pre-defined list of classes like “cat” or “car.”
Inherent Ambiguity: Because language is flexible, the task faces several types of ambiguity:
Polysemy: Words with multiple meanings (e.g., “mouse” as an animal vs. a computer device).
Subjectivity: Descriptors like “cozy” or “large” that vary by person.
Vagueness: Concepts like “brand identity” that may be hard to ground visually.
Boundary Issues: Uncertainty about whether an object like a “mirror” includes its frame.
Ambiguity Resolution: To handle these challenges, SAM 3 utilizes:
Interactive Refinement: Users can add positive/negative clicks or boxes to clarify their intent.
Ambiguity Module: An internal architectural component designed to predict multiple valid mask interpretations.
Expert Calibration: The evaluation protocol and data pipeline were designed using multiple expert annotations to account for various valid interpretations of a single prompt.
Data (Data engine and SA-co dataset)
To significantly improve Phrase-conditioned Segmentation (PCS), SAM 3 is trained using a large-scale, iterative data engine that combines human annotators, AI annotators, and model feedback. The system actively mines failure cases where SAM 3 performs poorly and prioritizes them for annotation, enabling rapid scaling and quality improvement. By introducing AI annotators for verification tasks that match or exceed human accuracy, the pipeline more than doubles annotation throughput compared to a human-only setup.

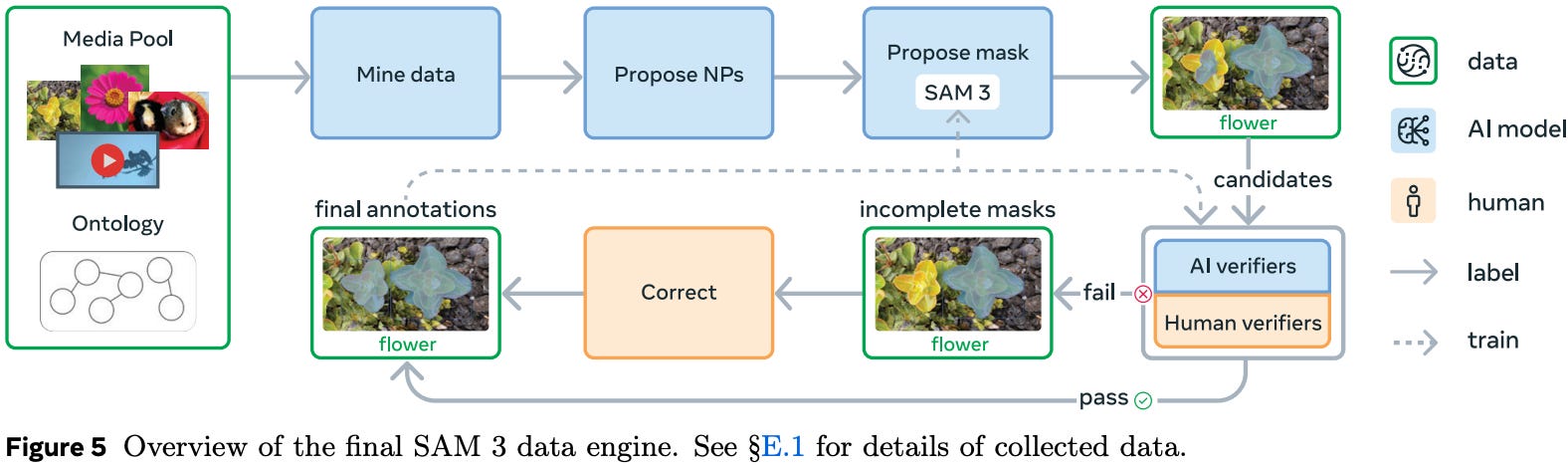

The data engine operates in four phases:
Phase 1 – Human Verification:
Images and noun phrases (NPs) are sampled, masks are proposed using earlier models, and humans verify quality and exhaustivity. This produces the initial SA-Co/HQ dataset (4.3M image–NP pairs), used to train the first version of SAM 3.Phase 2 – Human + AI Verification:
AI verifiers (fine-tuned Llama models) take over most mask quality and exhaustivity checks, with humans focusing on hard cases. NP mining is improved with adversarial hard negatives. This phase adds 122M image–NP pairs and roughly doubles data collection throughput.Phase 3 – Scaling and Domain Expansion:
The pipeline expands to 15 visual domains and long-tail, fine-grained concepts using a large ontology. AI verifiers handle most cases, with limited human supervision for new domains. This phase adds 19.5M image–NP pairs.Phase 4 – Video Annotation:
The engine is extended to video, producing spatio-temporal masks (“masklets”). Humans are concentrated on difficult video scenarios such as crowded scenes and tracking failures. The resulting SA-Co/VIDEO dataset contains 52.5K videos and 467K masklets.
The outcome is the Segment Anything with Concepts (SA-Co) dataset suite:
SA-Co/HQ: 5.2M images, 4M unique noun phrases (largest high-quality open-vocabulary segmentation dataset).

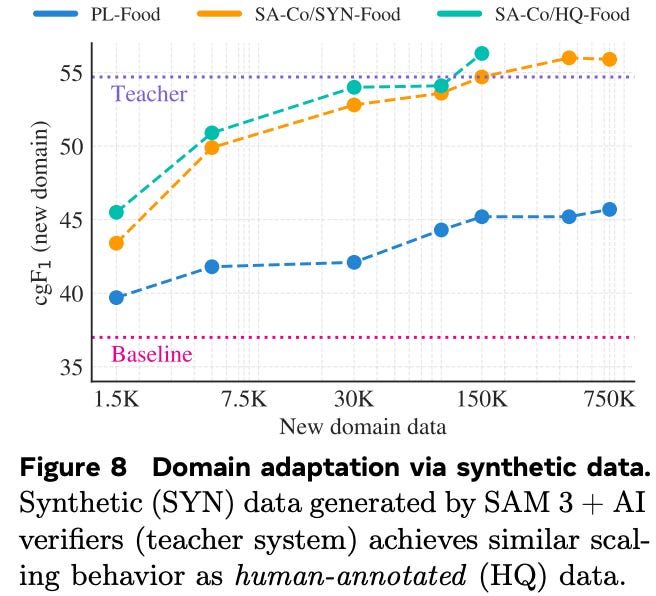

SA-Co/SYN: Fully synthetic annotations generated by the mature data engine.
SA-Co/EXT: External datasets enriched with hard negatives.
SA-Co/VIDEO: 52.5K videos with 24.8K unique noun phrases.
Metrics

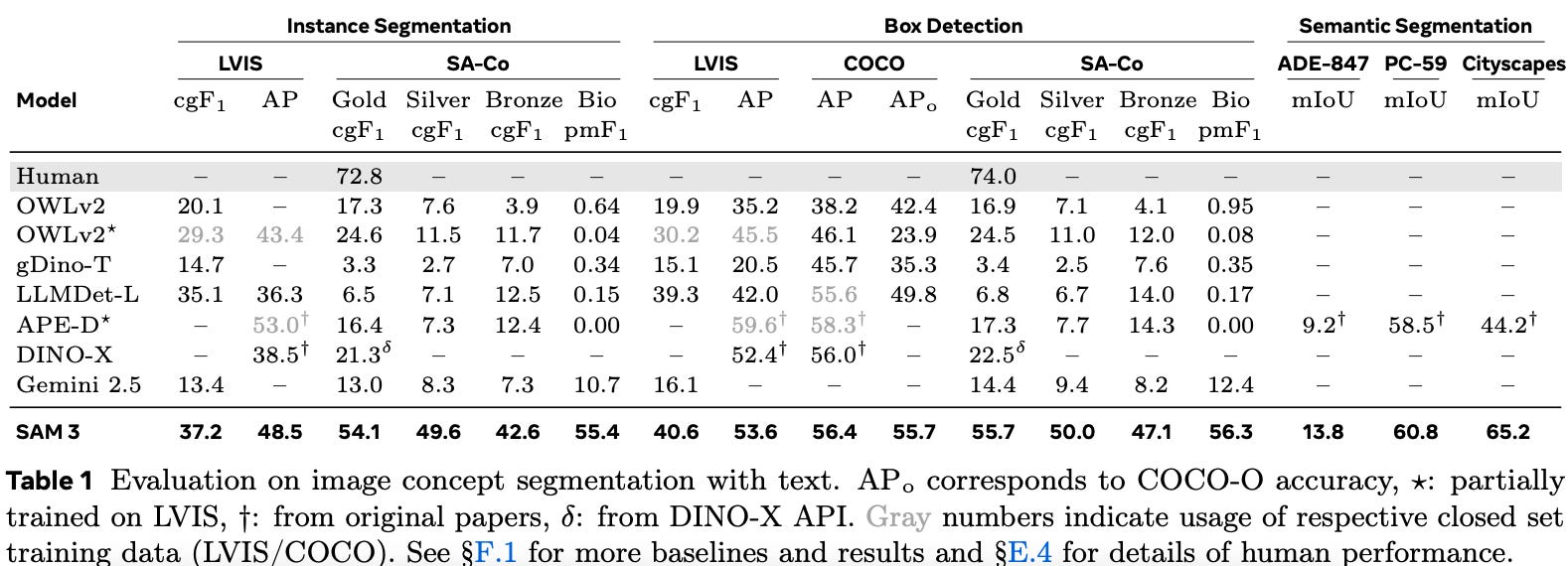

An accompanying SA-Co benchmark evaluates open-vocabulary segmentation across images and videos using carefully designed splits and hard negatives. Evaluation emphasizes calibrated, practical performance, combining localization (pmF1) and classification (IL_MCC) into a single metric, classification-gated F1 (cgF1), and explicitly accounts for annotation ambiguity via multiple ground truths.
Localization Metrics
F¹τ: local F1 score at threshold τ for one datapoint
pmF¹τ: positive micro F1 at threshold τ (aggregated over all datapoints)
pmF1: average of pmF¹τ over all τ ∈ [0.5, 0.95]
Classification (Image-level)
IL_TP: image-level true positives (object present and predicted)
IL_FP: image-level false positives (object absent but predicted)
IL_TN: image-level true negatives (object absent and not predicted)
IL_FN: image-level false negatives (object present but not predicted)

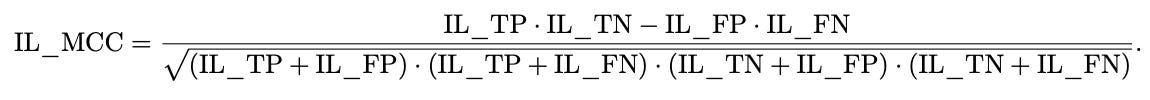

IL_MCC: image-level Matthews Correlation Coefficient, measuring binary classification quality with class imbalance
combining both; we get cgF1 (classification-gated F1):
Model Architecture
SAM 3 is a generalization of SAM 2, supporting the new PCS task as well as the PVS task. It takes concept prompts (simple noun phrases, image exemplars) or visual prompts (points, boxes, masks) to define the objects to be (individually) segmented spatio-temporally.

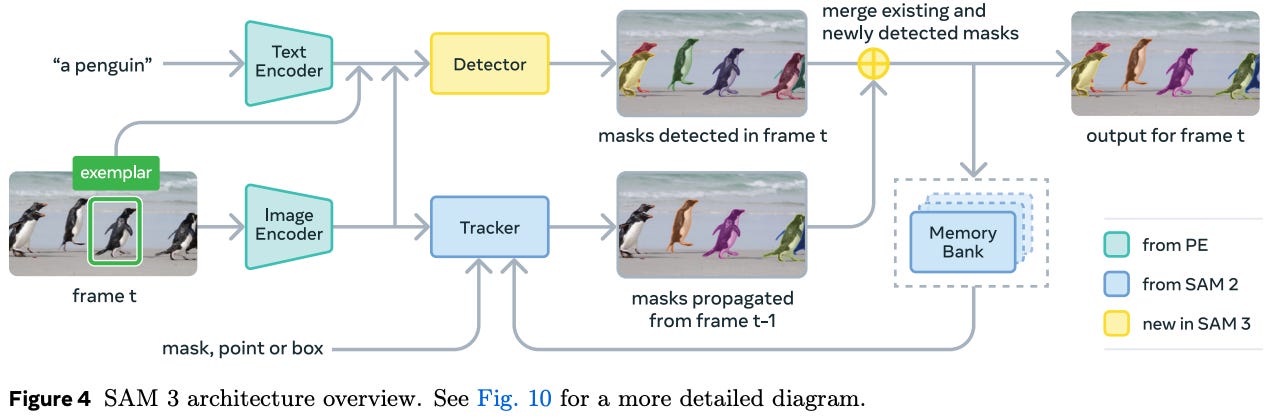

SAM 3’s architecture is divided into two new primary modules: a Detector for identifying concepts in space and a Tracker for maintaining them in time.
I. Detector Architecture (Solution to Where)
The detector follows the DETR (DEtection TRansformer) paradigm, where object detection is treated as a set-prediction problem.
Input Encoding: The image and text prompts are processed by the Perception Encoder (PE). If image exemplars (visual examples) are provided, they are processed by a dedicated Exemplar Encoder.
Fusion & Condition: A Fusion Encoder takes the raw image embeddings and conditions them using cross-attention with the “prompt tokens” (text + exemplars). This ensures the image features are “aware” of what the user is looking for.
Object Queries: Learned object queries then cross-attend to these conditioned image embeddings. For each query, the model predicts:
Classification Logit: A binary label indicating if the query matches the prompt.
Bounding Box Delta: A refinement of the object’s spatial location.
Dual Heads: The detector features both a Mask Head (MaskFormer-style) for instance-level shapes and a Semantic Segmentation Head for pixel-level categorical labels.
II. The Presence Token (Solution to What)
One of SAM 3’s most significant innovations is the Presence Token, which solves the “Hallucination Problem” discussed earlier.
Decoupling Strategy: Traditional models force every object query to figure out what an object is and where it is simultaneously. SAM 3 decouples this.
Global Gatekeeper: A learned global Presence Token is solely responsible for a single binary question: “Is the target concept present in this frame at all?”
Mathematical Filtering: The final score for any object query (q_i) is a product:
\(S_{final} = p(\text{NP present}) \times p(q_i \text{ matches NP } | \text{ NP present})\)By separating global recognition from local localization, the model achieves much higher calibration and avoids drawing “phantom masks” on background noise.
III. Image Exemplars and Interactivity
Unlike SAM 1 and 2, where a click yielded only one instance, SAM 3 uses Exemplars to define a category.
Categorical Guidance: If you provide a bounding box around one dog, SAM 3 uses it to find all dogs in the image.
Exemplar Encoding: Each exemplar (box + label) is encoded using ROI-pooled visual features, positional embeddings, and label embeddings. These are then fused with the text tokens to create a unified conceptual prompt.
Iterative Refinement: Users can add negative exemplars (e.g., “not this”) to remove false positives or positive exemplars to recover missed instances.
IV. Tracker and Video Architecture (The “When”)
For video, SAM 3 uses a “Detect-then-Propagate” strategy. It shares the PE backbone with the detector to minimize computational overhead.
Spawning New Masklets: On each frame, the detector identifies new objects (O_t) that correspond to the concept prompt.
SAM 2 Style Propagation: For objects already being tracked, the model uses a Memory Bank and Memory Encoder (inherited from SAM 2). It propagates the previous “masklet” (M_t-1) to its new location (M_t) using self-attention across frames.
The Matching Function: The system uses an IoU-based matching function to associate propagated masklets with new detections. This helps the model:
Recover from occlusions (e.g., a car going behind a tree).
Suppress tracking drift by periodically “re-prompting” the tracker with high-confidence detections from the detector.
Ambiguity Handling: For every tracked object, the decoder predicts three candidate masks. It selects the most confident one to handle uncertainty in complex scenes.
By sharing a backbone but decoupling the Recognition (Presence Head) from the Temporal Identity (Tracker), SAM 3 achieves a 2x performance gain over previous systems. It is the first model in the series where “knowing” the object is just as important as “tracing” it.
Training
The model consists of approximately 840 million parameters, with a vision encoder (450M) and text encoder (300M) forming the “Perception Encoder” (PE) backbone, while the remaining 100M are distributed across the detector and tracker.
Stage 1: Perception Encoder (PE) Pre-training
The foundation is built by pre-training the image and text encoders on a massive scale.
Data: 5.4 billion image-text pairs.
Objective: Establishing broad concept coverage and robust visual-language alignment.
Architecture: Transformers of “L+” size are used to balance performance and efficiency. Unlike SAM 2, this stage avoids distillation or video-specific fine-tuning, focusing purely on raw embedding quality.
Stage 2: Detector Pre-training (Open-Vocabulary Foundations)
This stage transitions the model from “seeing” to “localizing” by training the DETR-based detector.
Data: A mix of human-annotated and pseudo-labeled data, treating video frames as static images.
Task Training:
PCS Task: Randomly converting (image, noun phrase) pairs into visual queries or augmented bounding boxes to teach the model open-vocabulary detection.
PVS Task: Pre-training for traditional SAM tasks (points/clicks) using four specific decoder queries.
Optimization: Uses AdamW with a reciprocal square-root schedule. The loss function is a weighted combination of L1, gIoU, Focal, and Dice losses to ensure both bounding box accuracy and mask quality.
Stage 3: Fine-tuning and Interactivity (The Precision Stage)
This stage polishes the detector with the highest-quality data and introduces the model’s “Common Sense” gatekeeper.
Data: Strictly high-quality, exhaustivity-verified data (SA-Co/HQ); synthetic data is dropped to maximize precision.
Presence Token & Loss: The Presence Token is introduced here with a binary cross-entropy loss (weight: 20). This forces the model to explicitly predict whether a concept exists in a scene before attempting to segment it.
Active Interactivity: The training mimics real-world usage by sampling Positive Boxes (from false negative errors) and Negative Boxes (from false positive predictions). This iterative loop (5 iterations) teaches the model how to correct its own mistakes based on user feedback.
Stage 4: Video Tracker Training (Temporal Stability)
The final stage extends the model’s capabilities into the time dimension while keeping the backbone frozen.
Backbone Freezing: The PE backbone is frozen to preserve the spatial grounding learned in Stage 3.
Masklet Supervision: The tracker is trained on video segments (up to 32 frames) to propagate “masklets.”
Multi-Mask Logic: To handle ambiguity, the model predicts three masks per object, but only the mask with the lowest loss is supervised.
Occlusion Handling: A dedicated cross-entropy loss is applied to the Occlusion Prediction Head, ensuring the model knows when an object has disappeared and should no longer be tracked, even if it cannot see the object to supervise a mask.
In summary,
Inference: Real-Time Concept Grounding
During inference, SAM 3 functions as a real-time, unified engine that reconciles global conceptual understanding with local geometric tracking. On an H200 GPU, it processes a single image with over 100 objects in ~30ms and maintains near real-time performance in video for approximately 5 concurrent objects.
The inference pipeline is designed for high-speed interactivity, allowing users to switch between high-level text commands and precise visual refinements on the fly.
I. Image-Level Inference
When processing a single image, SAM 3 follows a “Filter-then-Localize” logic:
The Decision Gate: The Presence Token is the first to be evaluated. It calculates the probability of the concept appearing in the image. If this score is below a predefined threshold (typically 0.5), the model can terminate the process immediately, preventing hallucinations.
Open-Vocabulary Detection: The object queries interact with the conditioned image features to produce candidate bounding boxes and masks. Unlike SAM 1 and 2, which yielded one object per click, a single text prompt in SAM 3 (e.g., “car”) can trigger the simultaneous segmentation of every instance of that concept in the scene.
Interactive Refinement: If the initial detection is imperfect, the user provides Positive/Negative Exemplars (bounding boxes). These are encoded into “Prompt Tokens” and reinjected into the Fusion Encoder, allowing the model to update all masks across the image in one pass.
II. Video-Level Inference
Video inference leverages a streaming memory design that ensures temporal consistency without re-detecting every object from scratch in every frame.
Detection & Initialization: On the starting frame, the detector initializes masklets for all matching objects.
Propagation vs. Matching: For each subsequent frame (t):
Propagate: The tracker moves existing masklets (M_{t-1}) forward using the SAM 2-style memory bank.
Detect: The detector identifies “new” objects (O_t) that may have just entered the frame.
Match & Update: An IoU-based matching function determines if a detection belongs to an existing tracked identity or represents a new instance.
Temporal Disambiguation: To handle “drift” (where a mask slowly slides off an object), SAM 3 calculates a Masklet Detection Score (MDS). If an object isn’t matched to a high-confidence detection within a certain temporal window, the masklet is suppressed.
Periodic Re-prompting: To solve occlusion issues, high-confidence detector outputs are used to periodically reset the tracker’s memory. This “cleans” the tracker with fresh, verified visual data, preventing errors from accumulating over long sequences.
III. Ambiguity Resolution
Since natural language is polysemous (e.g., “mouse” can be an animal or a tool), the inference logic supports Multi-Mask Output:
For every query, the model predicts three valid masks representing different levels of granularity (e.g., “handle,” “door,” “car”).
During tracking, the model selects the most confident mask based on the temporal context, ensuring the identity remains stable even if the visual appearance changes drastically (e.g., a car turning a corner).
Results/Outcome
The results for SAM 3 demonstrate a paradigm shift in computer vision, where the model transitions from a simple geometric tool to a sophisticated “Conceptual Agent.” By every metric, SAM 3 sets a new state-of-the-art (SOTA) in zero-shot segmentation, often outperforming specialist models trained on niche datasets.
Image Segmentation: Setting the New Standard
SAM 3 was evaluated on the PCS task using text prompts across major benchmarks (COCO, LVIS, and SA-Co). The model was tasked with predicting instance masks, bounding boxes, and semantic regions from a single noun phrase.
SOTA Performance: SAM 3 established new records for zero-shot performance on COCO and LVIS. Specifically, it achieved significantly higher mask accuracy on LVIS compared to baselines like OWLv2 and GroundingDINO.
Closing the Human Gap: On the SA-Co/Gold benchmark, SAM 3 achieved a cgF1 score of 54.1, which is more than double the strongest baseline (OWLv2) and represents 74% of estimated human performance.
Semantic Superiority: In semantic segmentation (labeling every pixel), it outperformed specialist models like APE across datasets like ADE-847 and Cityscapes.
Interactive PCS and Few-Shot Adaptation
One of SAM 3’s greatest strengths is its ability to learn from Exemplars (visual examples) faster than previous “Promptable Visual Segmentation” (PVS) methods.
1-Exemplar Learning: When given a single image box as a prompt, SAM 3 outperformed T-Rex2 by massive margins: +18.3 AP on COCO and +20.5 AP on the ODinW “in-the-wild” benchmark.
The Power of Generalization: Unlike SAM 1 or 2 (which only fix the specific object you click), SAM 3 uses an exemplar to generalize. If you click one “rusted bolt,” it automatically improves its detection for all rusted bolts in the image.
Hybrid Gains: While PCS generalizes, the paper found that after ~4 clicks, a “Hybrid” approach, switching back to PVS (manual pixel-fixing) yields the highest possible quality.
Video PCS and Tracking
In the video domain, SAM 3 was tested on its ability to track concepts through complex motion, occlusions, and long sequences.

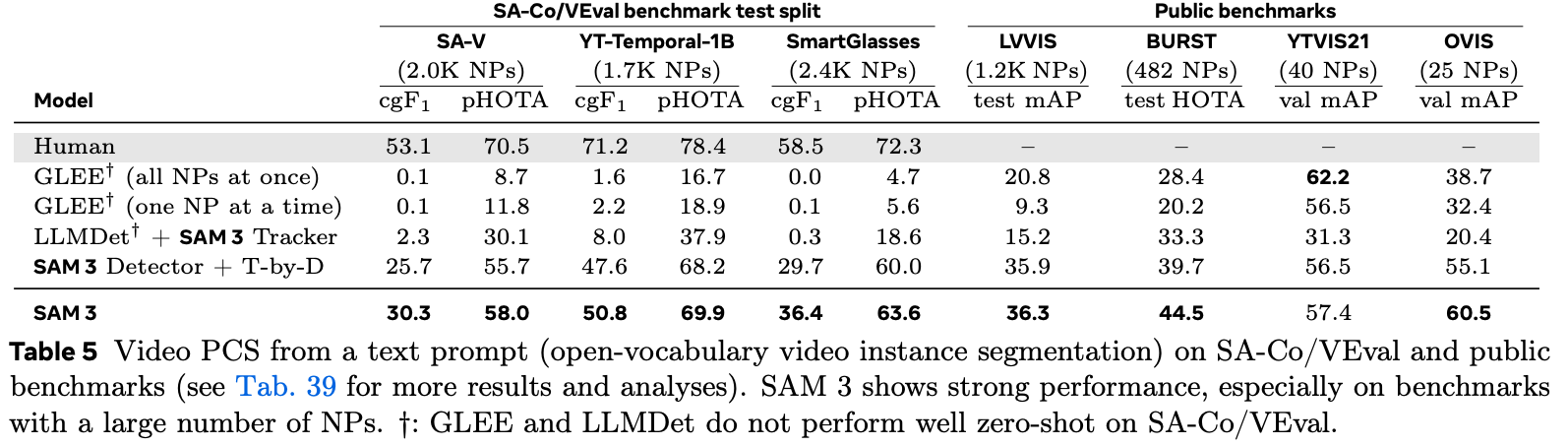

Benchmark Domination: On the SA-Co/VEval benchmark, SAM 3 reached 80% of human performance (pHOTA). It significantly outperformed GLEE and association-based “Tracking-by-Detection” baselines.
Handling Long-Tail Phrases: The model excels specifically on benchmarks with a very large number of unique noun phrases (NPs), proving its broad vocabulary is a functional advantage in video.

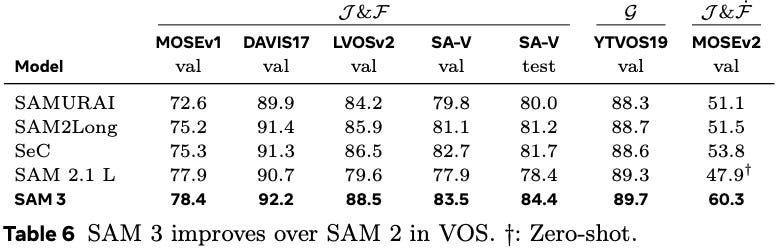

VOS Improvements: In traditional Video Object Segmentation (VOS), SAM 3 outperformed SAM 2.1 by a substantial 6.5 points on the challenging MOSEv2 dataset.
Specialized Tasks: Counting and MLLM Agents
The researchers also explored how SAM 3 could be used as a high-precision tool for larger AI systems.

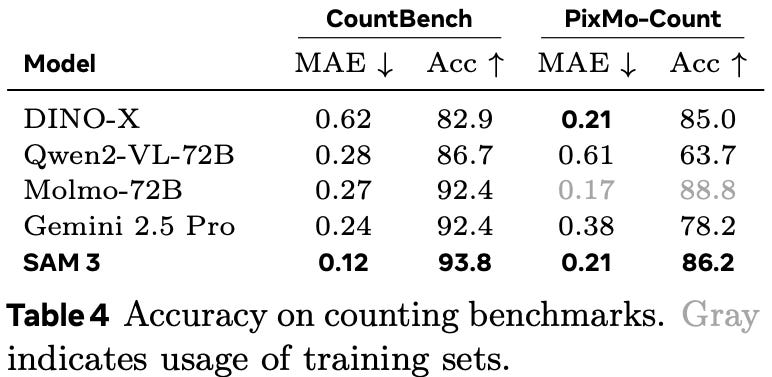

Object Counting: Unlike Multimodal Large Language Models (MLLMs), which often struggle with high-count numbers, SAM 3 achieved high accuracy on CountBench and PixMo-Count. Crucially, it provides the masks for the objects it counts, something most MLLMs cannot do.
The SAM 3 Agent: By combining SAM 3 with a reasoning model (like Llama), the researchers created an “Agent” that can handle complex queries (e.g., “Find the object the person is reaching for”). This zero-shot agent surpassed prior work on ReasonSeg and RefCOCO+ without any task-specific training.
Key Ablations: Why SAM 3 Works
The “Ablation” studies (removing parts of the model to see what breaks) confirmed the importance of the new architecture:
The Presence Head: Adding this gatekeeper boosted the IL_MCC (Presence Score) by +0.05, directly reducing hallucinations.
Hard Negatives: Training the model on things that look like the target but aren’t (e.g., a wolf vs. a dog) was the single biggest factor in precision, jumping the IL_MCC from 0.44 to 0.68.
Synthetic Scaling: The researchers proved that Synthetic Data (SYN) generated by SAM 3 + AI Verifiers is almost as effective as human-annotated data. This allows for massive domain adaptation (e.g., medical or industrial) without the cost of human experts.
The SAM 3 Agent
Out of all the sections in the very long yet descriptive (42 pages) paper; something that caught my eye was SAM3 Agent. The SAM 3 Agent is designed to handle queries that require visual common sense and relationship understanding. Instead of segmenting a phrase directly, the MLLM plans a multi-step strategy to arrive at the correct mask.
I. The Perception-Action Loop
The agent operates through a dynamic feedback loop:
Analysis: The MLLM analyzes the image and the complex user request.
Tool Call: The MLLM invokes SAM 3 using specific “tools” to generate or filter masks.
Visual Feedback: The environment returns a “Set-of-Marks” (SoM) image, the original image with colored, numbered masks rendered on it.
Revision: The MLLM inspects the results and either refines the plan or finalizes the output.
II. The Agent’s Toolset
The MLLM has access to four primary tools to manipulate the environment:
III. Context Engineering & Memory
Complex reasoning tasks often require extensive trial and error; sometimes up to 60 steps. This creates two technical challenges:
Context Exhaustion: Storing dozens of high-resolution images can exceed the MLLM’s context limit.
Visual Clutter: Overlapping masks from multiple rounds make the image unreadable.
Meta implemented Aggressive Context Engineering. After each new segment_phrase call, the system prunes the intermediate history and deletes all previous masks. To ensure the agent doesn’t repeat mistakes, it maintains a continuously updated list of previously used prompts, allowing it to learn from its “failures” without needing the full visual history.
IV. Outcome: Zero-Shot Reasoning
Because SAM 3 is so robust at the “concept” level, the SAM 3 Agent can perform high-level reasoning tasks zero-shot. It surpasses prior state-of-the-art models on benchmarks like ReasonSeg and RefCOCOg without ever being specifically trained on “referring expressions.” It simply uses the MLLM’s logic to break a complex thought down into the 4 million concepts SAM 3 already understands.
Why is this interesting/important?
The SAM 3 Agent represents the transition from a “passive tool” to an “active problem solver.” It is important for three primary reasons:
It solves the “semantic gap” by allowing the model to handle complex, abstract queries (e.g., “the object that caused the spill”) that cannot be captured by simple noun phrases.
Unlike traditional models that produce a single “one-shot” output, the Agent can self-correct. It inspects the masks SAM 3 generates and, if they are incorrect, revises its strategy by mimicking human-like trial and error.
Because it combines the planning of an MLLM with the 4-million-concept vocabulary of SAM 3, it achieves SOTA results on reasoning benchmarks (like ReasonSeg) without requiring any task-specific fine-tuning.
It introduces a novel way to manage AI memory. By “pruning” visual history but “retaining” a list of failed text prompts, it can perform long-horizon reasoning (up to 60 steps) without exceeding the MLLM’s memory limits.
You can read more about it here.
Thoughts
The End of the “Specialist vs. Generalist” Dilemma: For decades, researchers had to choose between a model that was deep but narrow (specialists) or broad but shallow (image processing). SAM 3 effectively collapses this divide. By encoding 4 million concepts into a universal backbone, it provides the robustness of a specialist with the limitless vocabulary of a generalist.
The introduction of the Presence Head is a profound architectural lesson. It acknowledges that “Where is it?” is a secondary question to “Is it there?”. By decoupling recognition from localization, SAM 3 solves the hallucination problem that plagued previous zero-shot models, ensuring the AI only segments when it actually “sees” the concept.
The Power of Synthetic Scaling: SAM 3 proves that we are entering an era of “Self-Correcting Data.” The fact that synthetic data (SYN) generated by the model itself, when verified by AI-verifiers, scales as effectively as human data suggests that the path to segmenting the next 40 million concepts won’t require 40 million more human hours (which is HUGE!).
The SAM 3 Agent is perhaps the most exciting frontier. It demonstrates that the future of vision isn’t just a better model, but a perception-action loop. By giving an MLLM the ability to “query” the visual world through SAM 3, we move toward AI that can perform complex reasoning tasks (like insurance Adjusting or surgical assistance) through a dialogue rather than a single static command.
By supporting text, image exemplars, and traditional clicks in a single unified model, SAM 3 lowers the barrier to entry for complex industries. A biologist can now “show” the model one rare cell type, and the model can find all others; effectively turning a state-of-the-art segmentation tool into a personalized, real-time assistant for any domain.
Hierarchical Concept Reasoning: Currently, SAM 3 treats 4 million concepts as a “flat” list of noun phrases. Integrating a differentiable taxonomy (e.g., knowing a “Golden Retriever” is a subset of “Dog” which is a subset of “Animal”) directly into the Presence Head would allow the model to share features across related classes, improving performance on rare, “long-tail” concepts.
Token-Efficient Video Memory: The current “Detect-then-Propagate” strategy is effective but computationally expensive for long videos. Implementing Compressed Latent Memory (in a recurrent setup or something like Titan from Google) where past frames/tokens are summarized into high-level semantic tokens rather than raw feature maps would allow the model to maintain object identity over minutes of footage rather than just 30-second clips.
Conclusion
At its core, Promptable Concept Segmentation reframes computer vision as a semantic dialogue rather than a geometric exercise. By moving beyond the silent “click” of previous models and introducing a 4-million-concept vocabulary, we gain the ability to navigate the visual world through the lens of human language rather than just pixel-level coordinates.
In this article, we began by tracing the lineage of the Segment Anything series, from the foundational geometry of SAM 1 to the temporal memory of SAM 2. We then identified the “Semantic Gap”; the critical limitation where previous models could trace an object but had no idea what it actually was. We revisited the spectrum of segmentation tasks (Semantic, Instance, and Panoptic) and saw how SAM 3 unifies them through Open-Vocabulary Panoptic Segmentation. We explored the methodology of the SA-Co Data Engine, diving into its four-phase evolution from human-only labeling to synthetic scaling. We dissected the architecture, highlighting the Presence Head as a global gatekeeper and the Shared Backbone that brings efficiency to video tracking. Finally, we discussed the SAM 3 Agent, a perception-action loop that treats an MLLM as the “brain” and SAM 3 as the “hands,” enabling the system to solve complex reasoning queries zero-shot.
Hence, the key takeaway is that SAM 3 is not just an incremental update; it is the first serious attempt to integrate deep semantic understanding directly into the segmentation process. It proves that when we decouple the “what” from the “where,” we don’t just get better masks, we get a model that truly recognizes the world it sees. Personally, I’m excited about the possibilities that emerge when a vision model no longer just sees pixels, but understands concepts.
References:
SAM 3 : https://arxiv.org/pdf/2511.16719
SAM : https://arxiv.org/abs/2304.02643
SAM 2 : https://arxiv.org/abs/2408.00714
That's all for today.
Follow me on LinkedIn and Substack for more such posts and recommendations, till then happy Learning. Bye👋
Just what I was looking for! Very excited to delve into it. Thank you!
